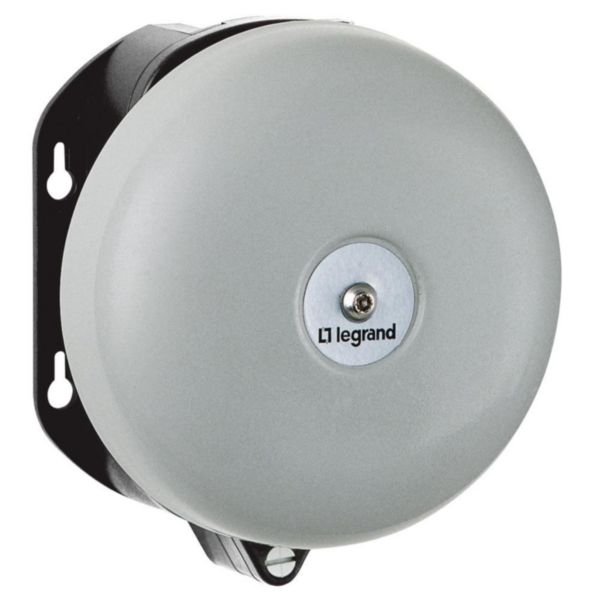

Bell - for industrial and alarm use - IP44 - IK10 230 V~ - Ø150 mm gong

Name: Bell - for industrial and alarm use - IP44 - IK10 230 V~ - Ø150 mm gong
SKU: 041419

LEGRAND

REF. 041419 EAN. 3245060414191

Compare You can only compare 4 products, you must remove 1 to add this one

Bells for industrial and alarm use
Class I - Double insulated - Polyester corrosion resistant finish - 200 hours maxi. continuous ratingIP 44 - IK 10 - 150 mm gong - RAL 7037 Grey - Voltage : 230 V~ - Consumption : 50 mA - Average acoustic output at 1 m : 98 dB - Weight : 1 kg

degree of impact strength (IK)	IK07
Operating / setting temperature	-10-+55 °C
Storage temperature	-10-+55 °C
Frequency	50-60 Hz
Halogen free	Yes
Connection type	Screwed terminal
Fitted with rainproof plate protection	No
With complemantary luminous signal	No
Mounting method	Surface mounted
Vertical fixing center distance	60-60 mm
Horizontal fixing center distance	106-106 mm
Contains Batteries and/or Accumulator	No

1 document

Select all

Instruction Use

4065873-00.pdf pdf (0.21 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0551.pdf pdf (0.1 Mo)

1 document

Select all

PEP

LGRP-00143-V01.01-EN.pdf pdf (0.61 Mo)

Bell - for industrial and alarm use - IP44 - IK10 230 V~ - Ø150 mm gong
