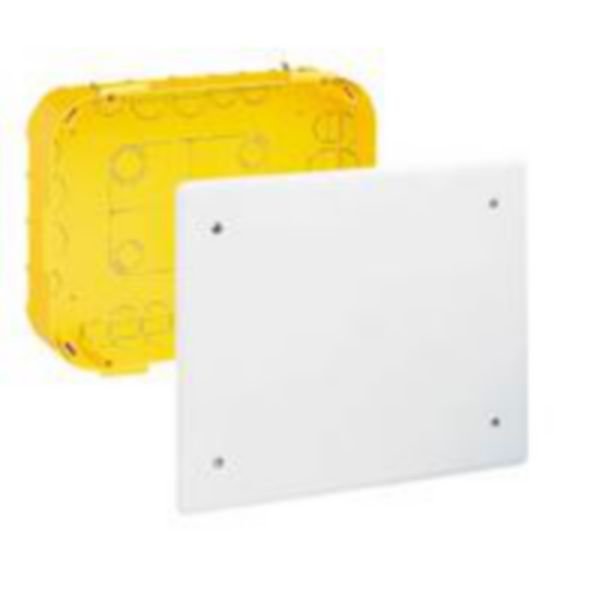

Batibox - Junction box - with cover and screws - 115x115x40 mm - for dry partition
Batibox
LEGRAND
Batibox - Junction box - with cover and screws - 115x115x40 mm - for dry partition
REF. 089372
EAN.
3245060893729
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Mounting method | Hollow wall |
|---|---|
| Shape | Square |
| Construction type | Cable junction box |
| Model | Single |
| Provided with revolving ring | No |
| Couplable | No |
| Equipped with | None |
| Length | 135 mm |
| Width | 135 mm |
| For number of electric fittings | 0 |
| With screws | Yes |
| Housing feed-through by break-out opening | Yes |
| Housing feed-through by seal membrane | No |
| Housing feed-through by step membrane | No |
| For tube diameter | Other |
| Suitable for cable diameter | 16-32 mm |
| Pipe locking | No |
| Pipe locking optional | No |
| Inlet from the rear | Yes |
| Number of inlets | 13 |
| Material | Plastic |
|---|---|
| Halogen free | Yes |
| Surface protection | Untreated |
| Colour | Yellow |
| Degree of protection (IP) | IP20 |
| Cover model | Construction protective cover |
| Transparent cover | No |
| Cover attachment | Screwed |
| Sealable | No |
| Circuit integrity | None |
| With screening | No |
| Air tight | No |
| Number of poles of the clamp | 0 |
| Clamp position fixed | No |
| Luminaire hook mounting | No |
| Nozzle | None |
| Special application | None |
| Degree of impact strength (IK) | IK02 |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -5-60 °C |
