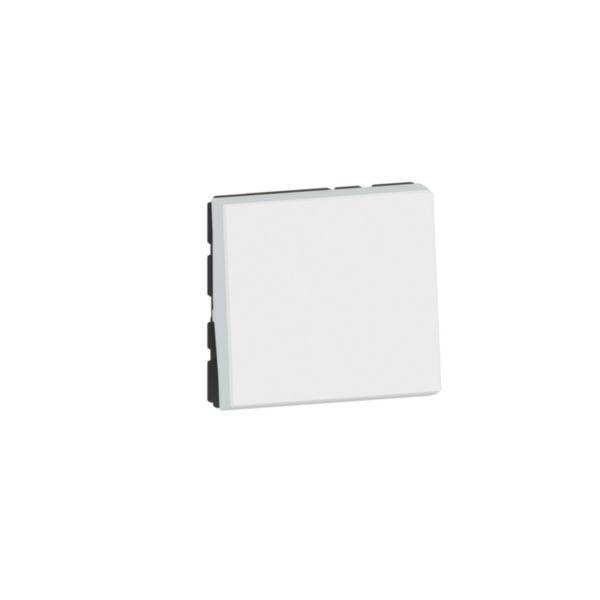

Name: 1way switch 10AX (2 modules) white
SKU: 077010L

1way switch 10AX (2 modules) white

LEGRAND

1way switch 10AX (2 modules) white

REF. 077010L EAN. 3414971575134

Compare You can only compare 4 products, you must remove 1 to add this one

Wiring system	Two-way switch
Method of operation	Rocker/button
Assembly arrangement	Modular device for domestic switching devices
Number of modules (module system)	2
Push button switch	No
Number of rockers	1
Mounting method	Module frame
Type of fastening	Engage (snap)
With mounting plate	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Glossy
Colour	White
RAL-number (similar)	9003
Colour of switch operator	White
Label space/information surface	No
Illumination	No
Function lighting	Other
Type of lighting	Other
Suitable for degree of protection (IP)	IP31
Degree of impact strength (IK)	IK04

Nominal voltage	250 V
Rated current	10 A
Switching current for fluorescent lamps	10 AX
Feedback-signal contact	No
Connection type	Other
Heating switch	No
Washing machine switch	No
Device width	45 mm
Device height	45 mm
Device depth	36.5 mm
Built-in depth	24 mm
Min. depth of built-in installation box	30 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature	-5-35 °C
Storage temperature	-10-70 °C
Voltage type	AC
Frequency	50-60 Hz
Terminal marking indication	Yes
Terminals capacity	2.5-2.5 mm²
Cable section	2.5-2.5 mm²

1way switch 10AX (2 modules) white
