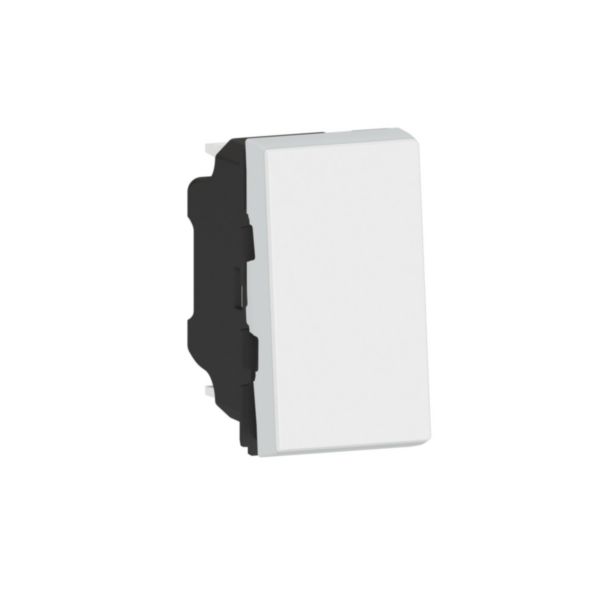

1-way pushswitch 6A 1 module white europe
LEGRAND
1-way pushswitch 6A 1 module white europe
REF. 278030L
EAN.
3414971574359
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Assembly arrangement | Modular device for domestic switching devices |
|---|---|
| Model | Single push button |
| Method of operation | Rocker |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of rockers | 1 |
| Number of modules (module system) | 1 |
| Number of poles | 1 |
| Nominal voltage | 250 V |
| Rated current | 6 A |
| With lighting | No |
| Feedback-signal contact | No |
| Connection type | Push-in clamp |
| Mounting method | Flush-mounted |
| Type of fastening | Engage (snap) |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White |
| RAL-number (similar) | 9003 |
|---|---|
| Transparent | No |
| Label space/information surface | No |
| Imprint | None |
| Suitable for degree of protection (IP) | IP31 |
| Degree of impact strength (IK) | IK04 |
| Device width | 45 mm |
| Device height | 22.5 mm |
| Device depth | 36.3 mm |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 24 mm |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Frequency | 50-60 Hz |
| Terminal marking indication | Yes |
| Terminals capacity | 2.5-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 2.5-2.5 mm² |
